How To Create A Powershell Script To Backup Your Azure Blobs

In this post I will show you how easy it is to create a PowerShell script using Visual Studio that can backup your Azure Blobs. The same concept can be applied to backup Azure Tables and SQL Database. To successfully follow this example, you will need a few things. First, we are coding in C# with Visual Studio 2012. The actual backup operation is rather complex, so we will be using the free API provided by Blue Syntax ( to perform the actual backup operation. The PowerShell script will be calling the API.

Install And Configure Enzo Cloud Backup

As a pre-requisite, you will need to install the Enzo Cloud Backup tool, and the Enzo Cloud Backup API Version 3. Both can be found on the Blue Syntax website ( Click on the Download button found on the product description page, and install Enzo Cloud Backup, and Enzo Cloud Backup API.

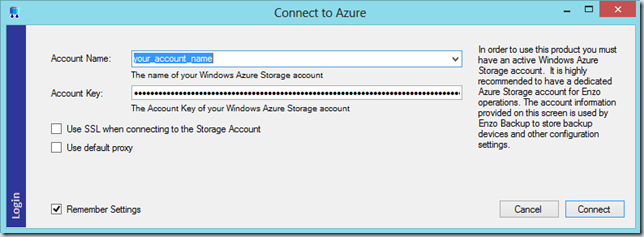

Once installed, start Enzo Cloud Backup. You will see a Login page. You will need to specify an Azure Storage Account where Enzo will store its configuration information. It is recommended to use a Storage Account that is used by Enzo only. Once you have created the Storage Account in your Azure subscription, enter the Account Name and an Account Key on this screen to proceed.  For detailed information on how to create an Azure Storage Account and access the Account Key, read this blog post:


Once logged in, you will need to register your product in order to obtain license keys; this is a very simple step and will ensure that you obtain the necessary license keys to run this example (to register your product, start Enzo Cloud Backup, and go to Help –> Request Permanent License Keys). There is no charge for the Community Edition of Enzo Cloud Backup; the API comes at no charge as well. Once registered you will receive an email with your license keys, so make sure you enter a valid email address in the registration key.


Create a Class Library Project

Now that the Enzo Cloud Backup tool is installed along with the API, let’s create a new project in Visual Studio 2012. The project type is a class library. I named this project PSEnzoBackup. Make sure you select a Visual C# project; the code provided further down is written in C#.


Configure Your Project

Once the project has been created, rename the Class1.cs file to BackupBlob.cs and make sure the class name is also renamed to BackupBlob. The end result should look like this in you Solution Explorer.


Once the class has been renamed, add the following references to your project:

  • System.Management.Automation
  • CloudBackupAPI
  • EnzoBackupAPI

You can find the Automation DLL on your development machine (usually under C:\Program Files (x86)\Reference Assemblies\Microsoft\WindowsPowerShell). The other two libraries can be found in the directory where you installed the Enzo Cloud Backup API (they are usually found in a subdirectory of C:\Program Files (x86)\BlueSyntax\).

Add A Backup Method

At this point, the project is ready for development. Paste the following code into your BackupBlob.cs file as-is.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Management.Automation;

namespace PSEnzoBackup
    [Cmdlet(VerbsCommon.New, "BlobBackup")]
    public class BackupBlob : PSCmdlet
        private string[] _blobNames;

            ValueFromPipelineByPropertyName = true,
            ValueFromPipeline = true,
            Position = 0,
            HelpMessage = "The list of blobs to backup (container/blob) separated by a comma. Can use * as a wildcard."
        public string[] BlobNames
            get { return _blobNames; }
            set { _blobNames = value; }

        protected override void ProcessRecord()
            WriteObject("Starting the backup operation...");

            BSC.Backup.Helper.AzureBlobBackupHelper backup = new BSC.Backup.Helper.AzureBlobBackupHelper(
            backup.Location = BSC.Backup.Helper.DeviceLocation.LocalFile;
            backup.DeviceURI = @"c:\tmp\backupfile.bkp";
            backup.Override = true;
            backup.SpecificBlobs = _blobNames.ToList();
            backup.UseCloudAgent = false;

            string operationId = backup.Backup();



The ProcessRecord() method is a protected override of the method that will be called by the PowerShell command. In this method, we simply create a reference to the AzureBlobBackupHelper class; the constructor requires the account name and keys of the Azure Storage Account used by Enzo Cloud Backup, and the API license key. Additional properties are available on the backup object; we are specifying that a local file backup device will be created, and will override any existing file. The SpecificBlobs property is set to the list of blob names provided as parameters to the PowerShell command. The Backup() method returns an OperationId which can be used by other Helper classes to check on the progress of the backup operation. We are hard-coding the account credentials and the name of the backup file, but it would be easy to provide parameters instead (as we did with the BlobNames parameter).

Before compiling this code, you will need to replace a few things:  the ENZO_STORAGE_ACCOUNT and ENZO_STORAGE_KEY are those used by the Backup application when you login (see the pre-requisites above). As indicated earlier, you must run the Enzo Backup application at least once to create the necessary configuration tables that the API uses. The AccountName and AccountKey you use to login in Enzo Backup are the ones you need to specify here.  The YOUR_API_LICENSE_KEY is the API License Key you received by email when registering your product with Blue Syntax. Once you have specified those values, you can compile this code.  Note the path where the DLL is being created when you compile as you will need it soon.


Test the PowerShell Script

Open a PowerShell command and type this command to load the PowerShell library we just compiled.

Import-Module "C:\YOUR_FULL_PATH_TO_PROJECT_DIRECTORY\PSEnzoBackup\bin\Debug\PSEnzoBackup.dll"

And finally, run the following command to backup all your blobs. The BlobNames parameter is a list of blob names (specified as ContainerName/BlobName) separated by a comma. The list of blobs supports a wildcard (*/* means all containers and all blobs). For more information about this parameter, and other properties available by this API, visit the online help here:

New-BlobBackup -BlobNames */*

You can easily wrap the commands provided by the Enzo Cloud Backup API in a PowerShell module, including backup Azure Tables, SQL Databases, and even restoring them. This example shows how to backup to disk, but you can also backup to blobs. To learn more about the API visit

Download The Sample Code

You can download the sample code provided above. In order to run this project, you will need to update the project references, have PowerShell 3.0 installed, the Microsoft Azure SDK installed, and the Enzo Cloud Backup API installed as well. Click here to download the sample project.
